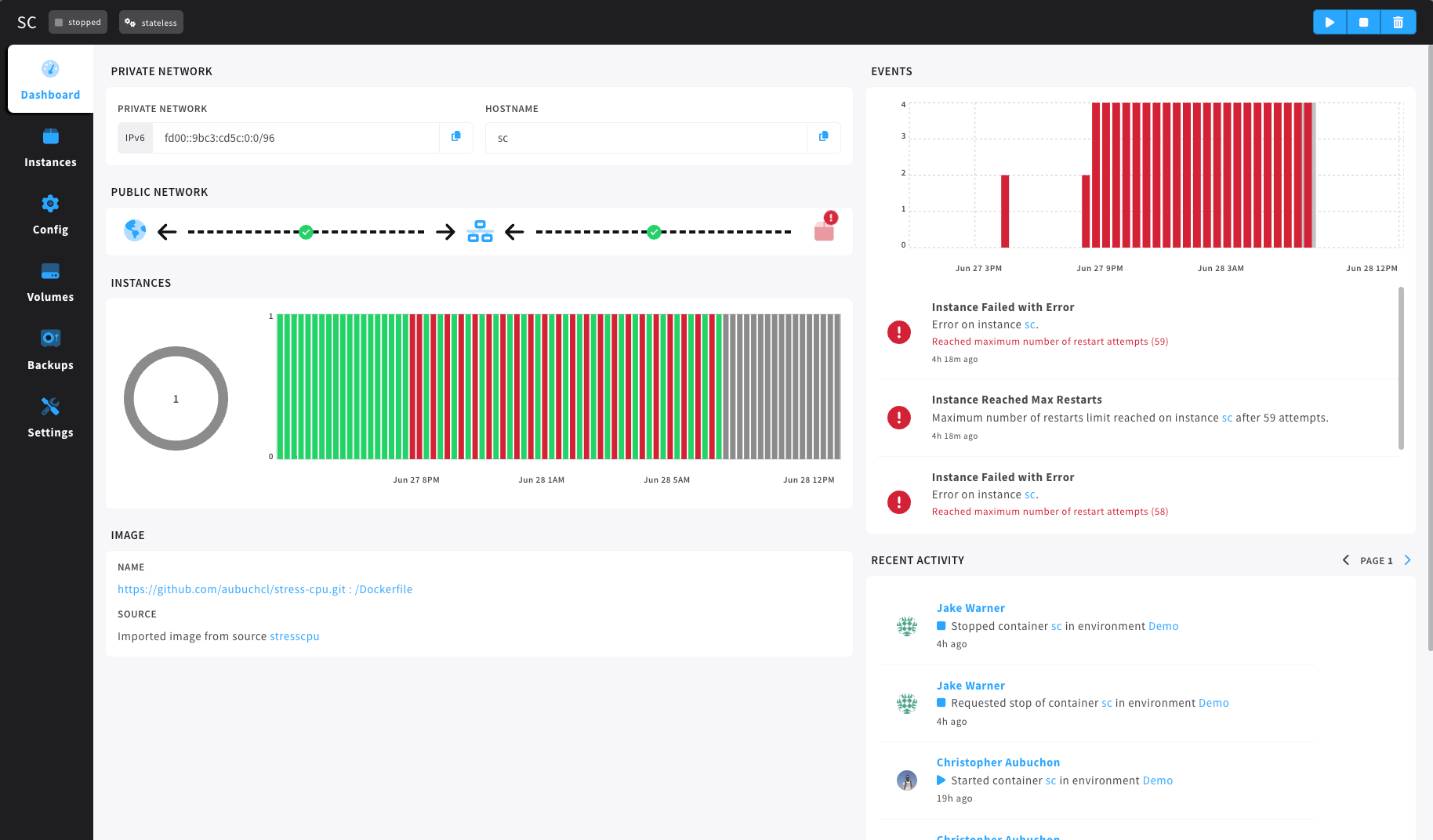

Container Dashboard
Users trying to get a general overview of container data can use this dashboard for a high level look. Access this modal by clicking on an individual container entry on the containers dashboard.
To get there:
- Environments from the main, left-hand navigation.
- Select the environment to work with from the first column.
- Use the Containers tab from the horizontal navigation.
- Select the container to interact with.
Private Network
Here users will find information about current setting for this containers environment level networking.
| Field | Description |
|---|---|
| Private Network | Shows the CIDR for the container. |
| Hostname | Shows the currently set hostname for this container. |
Public Network
The public network section of the container dashboard is especially useful for publicly accessible containers. It includes a graph, useful for debugging common public network issues, and a list of currently associated Linked records.
Instances
The instances tile shows the number of current container instances and their state. Users can also see a history of the container instance state from the last few days on the graph.
The image tile gives the user a link to the image used when creating this container and the image source. These values will update after a reimage event happens.
Events
Each container has its own events graph. This graph shows events from the last 36 hours.
Queryable Event Graphs
Soon these event graphs, will be queryable for periods outside this range. Users can see a list of recent changes in our Changelog .
Recent Activity
Containers also get a filtered list of activity, which can give them a great look at whats recently changed with this container.
