Container Deployment Configuration

Deployment configuration is essential to managing the granular actions the container will take in response to different events like starting, stopping, reporting, health checks, and more.

Initial Instances

Initial instances refers to the number of instances to create during the container create process.

Deployment Strategy

Get full info on deployment strategies here

Function

For function containers, there is additional settings available:

FieldDescription
Max Pool SizeThe maximum number of instances that Cycle can pre-allocate (includes auto-scaled instances).
Max Shard ConcurrencyFor each shard (scheduler), the maximum number of tasks it can run in parallel.
Max RuntimeThe maximum amount of time a function instance can run before timing out.
Max Queue TimeThe maximum amount of time Cycle will wait for an instance to be available.

Constraints

The constraints form has two way to tag container instances:

FieldDescription
Tags AnyA list of tags for the instance. If a server matches any tag in the list, that server becomes a viable candidate for the instances.
Tags AllA list of tags for the instance. A server must match every tag on the list in order to become a viable candidate for the instances.

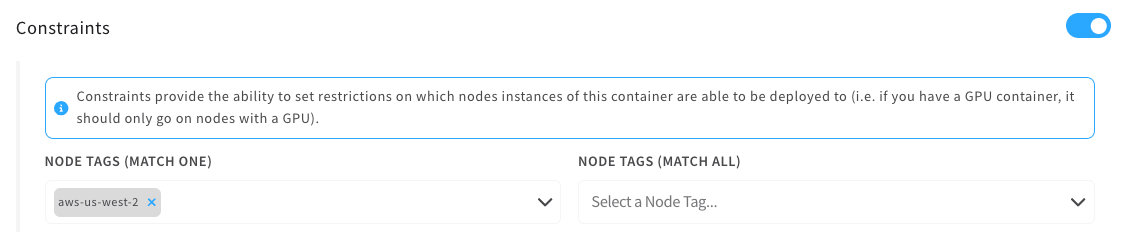

deployment constraints

Startup Policy

A delay, in a time string (ex: 1h30m24s), that Cycle will wait before sending the start signal to this container upon environment start.

deployment startup policy

Shutdown Policy

Information on how Cycle should handle a shutdown signal.

Graceful Timeout - A time string (ex: 1h30m24s) the platform will wait for a container to stop gracefully.

deployment shutdown policy

Restart Policy

Information about how Cycle should handle a restart event.

FieldDescription
Restart ConditionIf the container fails, under what conditions should Cycle attempt a restart.
DelayA time string (ex: 1h30m24s) for how long to wait between restart attempts.
Max RestartThe maximum number of times to try and restart this container.

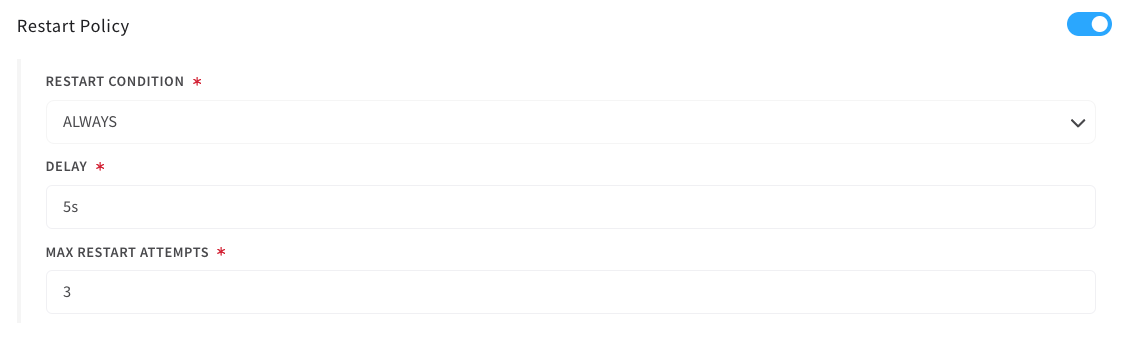

deployment restart policy

Update

This setting is used to configure behavior of the container instances on "update" (reimage). The main setting is "Stagger", which, when set, will cause the platform to pick a random time from 0 - this duration. This stagger is applied to the instances so they all re-start at different times (up to the time specified here).

deployment update policy

Reimage & Downloads

When reimaging a container, the Cycle platform will fully download the image to the server before the reimage step is executed.

Health Check Policy

Commands and instructions Cycle will run to verify container health.

FieldDescription
CommandThe command to run; success will mean that the container is healthy, and error will mean that it is not.
RetriesHow many times to try the command.
DelayHow long to wait before performing an initial health check when the instance starts. The state of the instance will be null until the first check is performed.
IntervalA time string between tries to wait before trying again.
TimeoutA time string that indicates the amount of time to wait before assuming the command has failed.
Restart on FailIf checked, when the container enters the unhealthy state, it will automatically restart.

Command Syntax

Use "" quotes to wrap the script for inline scripting. Writing something like sh -c "script here" will not work correctly because of the way the sh shell exits.

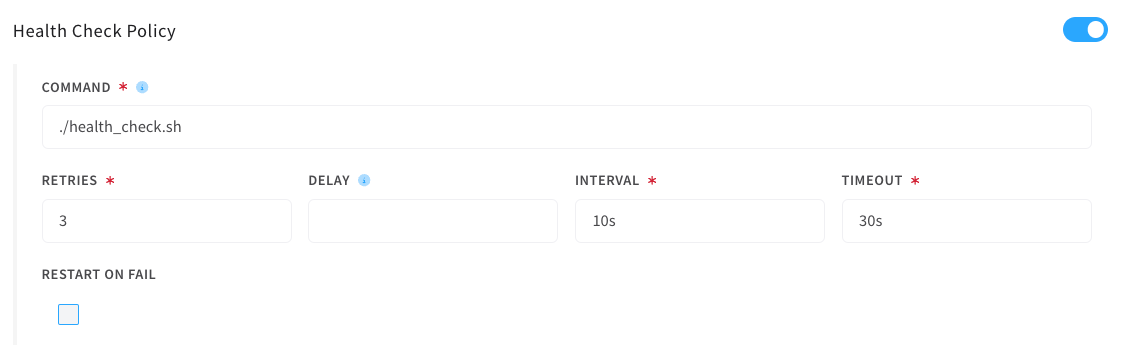

deployment health check policy

Health State

To learn more about the health state of the container instances as they respond to health checks check the Instances API Docs . Here users can expand the data object, then state, and finally health to get an idea of what the health states mean.

More advanced uses may use this information to build a healthiness probe for their instances.

Telemetry

Settings for to collect telemetry data.

FieldDescription
RetentionA time string (ex: 1h30m24s) for how long the platform will retain telemetry for a given instance.
IntervalA time string (ex: 1h30m24s) that represents how much time each telemetry report will cover.
WebHookA URL that Cycle will post telemetry reports to.
Disable TelemetryIf checked, this will disable all telemetry reporting for this container.

deployment telemetry
