Virtual Machine Telemetry

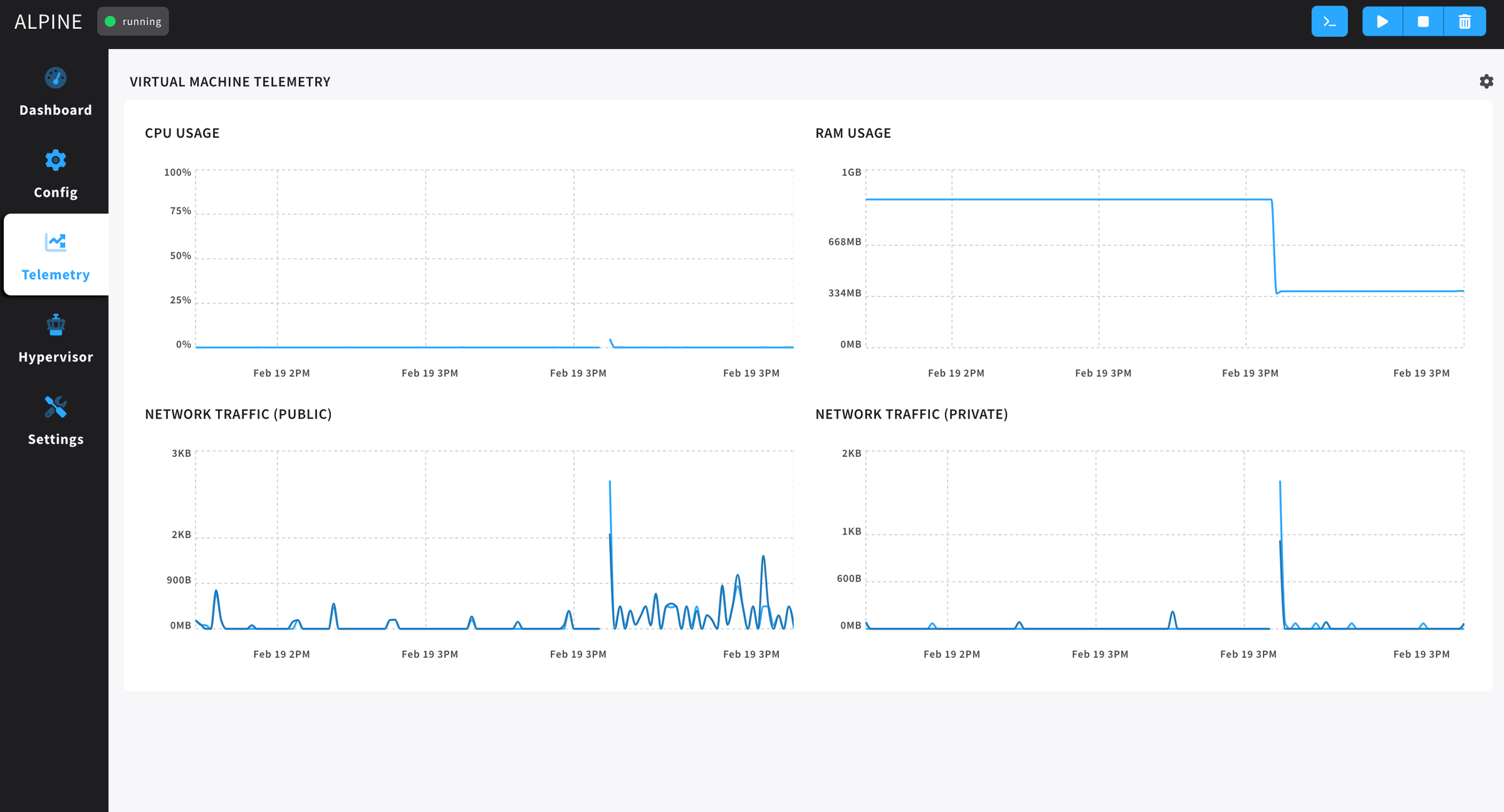

Each virtual machine reports 4 telemetry charts in the portal:

  1. CPU Usage
  • Shows how many milliseconds of usage this virtual machine is consuming over 30 second intervals.
  1. RAM Usage
  • Shows both kernel memory (purple) and RAM consumption (blue) for this virtual machine, in megabytes.
  1. Network Traffic (Public)
  • Shows the transmitted and received bytes (tx, rx) for the virtual machine over the eth-pub interface.
  1. Network Traffic (Private)
  • Shows the transmitted and received bytes (tx, rx) for the virtual machine over the eth-priv interface.
vm telemetry report

Stream Or Report

Selecting the gear will open a submenu, allowing the user to select Stream or Report.

  • Stream: Will stream new data points to the virtual machine telemetry page showing usage in real time.
  • Report: Will create a report of data and populate the graph based on the time period selected from the dropdown.

Stored Telemetry Data

The graph will only show the data that it has. To check the telemetry data retention settings for any given virtual machine, go to the virtual machine deployment configuration and scroll down to telemetry.
