Users can add and remove virtual providers through the portal through the hub integrations form. To get there:
- Click on Hub from the main, left-hand navigation
- Select Integrations
- From the list of providers select Virtual Provider
Beta Access
At this time the virtual providers feature is in open beta. While it has been in closed beta for a few months and has been stable, caution is advised for the most important of workloads.
Have a question, request, or want to see what others are doing with virtual providers? Head over to the Cycle Community!
Add a Virtual Provider

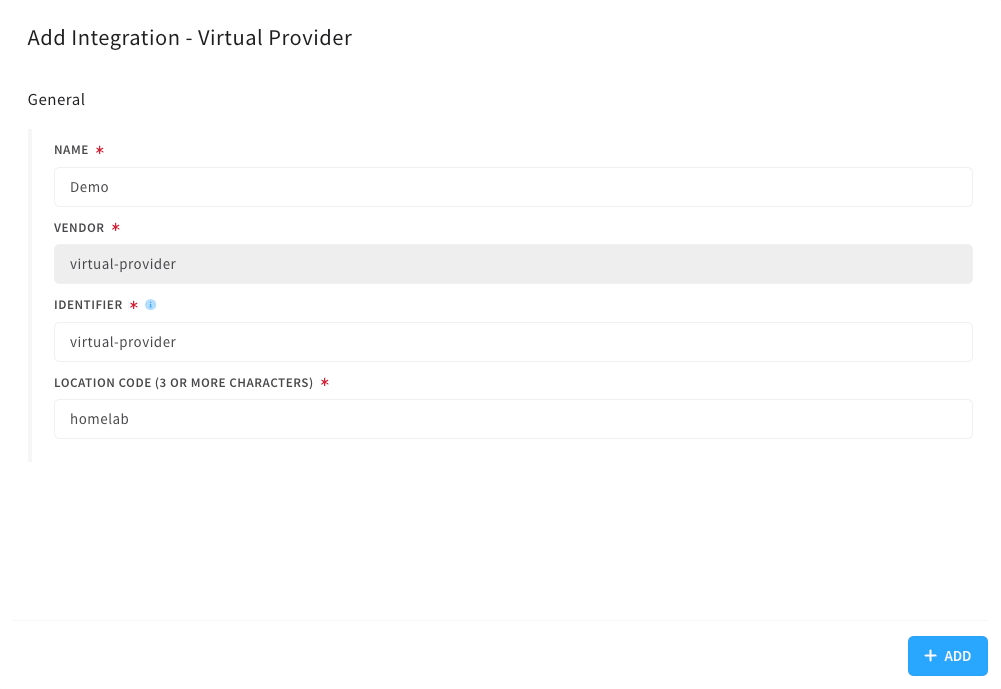

After navigating to the hub integrations and selecting the virtual provider option, use the button Add Integration to open the virtual providers create form.
Field | Description |
|---|---|
name | A name for the virtual provider, each hub supports 1 or more. |
vendor | This value is fixed to virtual-provider and the value is used by the platform. |
identifier | An identifier for the virtual provider. See platform docs |
location code | Code representing the location of the nodes planned to be used with this virtual provider. |
Once the fields are filled out, submit to create the virtual provider.
Adding a Server from a Virtual Provider
There are two additional steps after uploading the ISO to the virtual provider server:
- Remove from quarantine and restart.
- Add to a specific cluster
When the virtual provider server checks in with the Cycle hub for the first time it is put in quarantine. Remove the server from quarantine by finding it on the servers page under infrastructure and then add the server to the desired cluster and it will be ready for use.
Dynamic Memory
Servers created through virtual providers will not support using dynamic memory on the host hypervisor.
Virtual Providers and Public IPs
IP's cannot be requested and assigned to load balancers on virtual provider servers unless the user adds IP pools for the server to use.
Managing a Virtual Provider
Managing a virtual provider is done through the row entry on the virtual providers integration page for the hub.

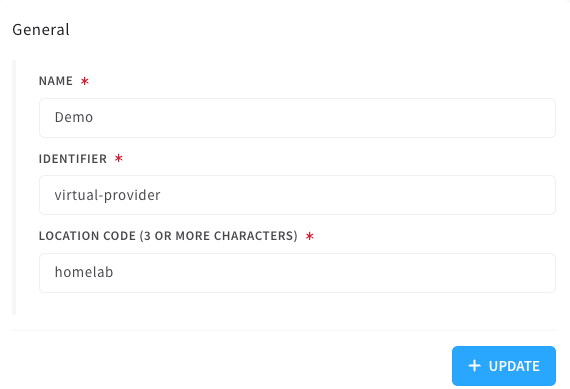

Update Virtual Provider
Users can update the information associated with a given virtual provider by selecting a created virtual provider opening the edit form and then submitting changes via the Update button.
Delete Virtual Provider
If a virtual provider needs to be deleted, select the trash can icon on the virtual provider entry and click it.
Creating an ISO
In order to join a server into a cluster in the hub, an ISO must be created and then made available to the joining server so that it can be used on boot. This is most practically achieved by burning the ISO to a thumb drive but can also be served via technology like iPXE.
To create a new ISO associated with a virtual provider open the ISO create form by pressing the + button next to the ISO's tile.

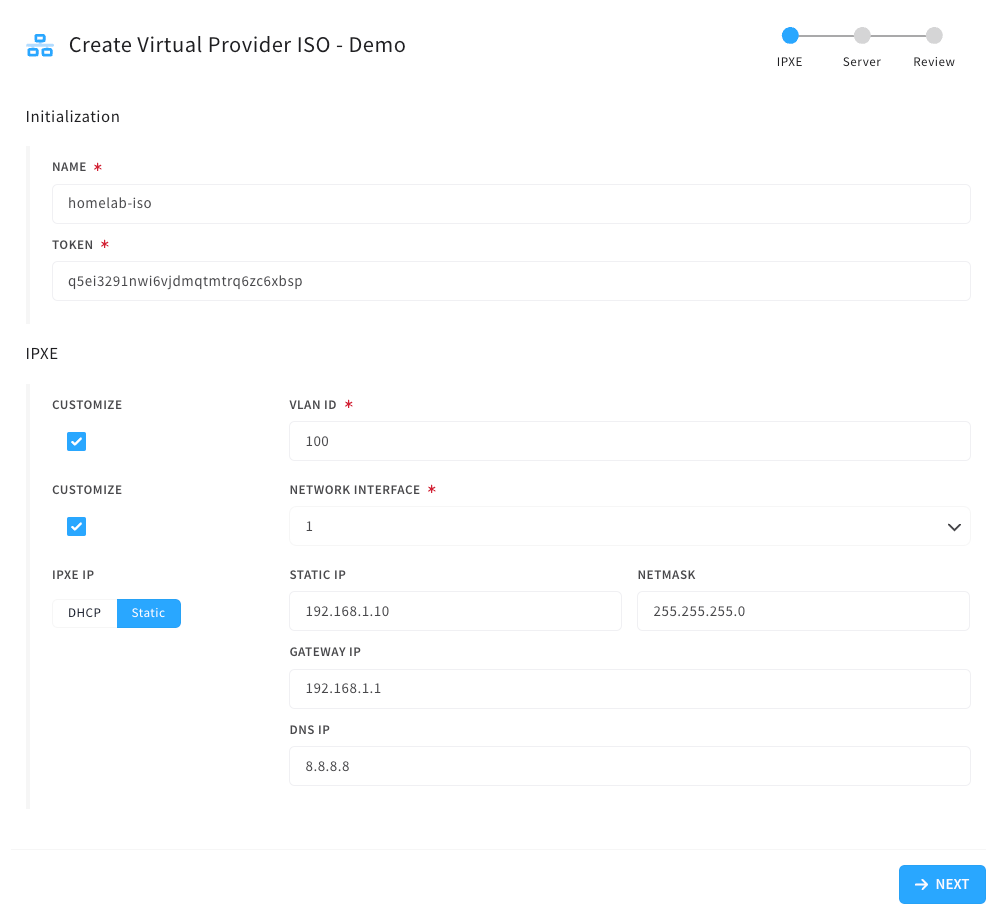

Below is an image outlining custom iPXE if needed. iPXE is NOT required for the ISO to boot and the iPXE section can be skipped completely if using a thumb drive.
The two required fields on this page of the form are name and token and they are in the initialization section
Changes to ISO
After creating the ISO, most fields can be changed through an update to the ISO. If an update is made to the ISO the ISO needs to be re-downloaded and either burned to the thumb again or added to your iPXE solution.
Initialization Options
Field | Description |
|---|---|
name | A name for the given ISO. |
token | Generated by the platform and used for authentication. |
iPXE Option Definitions
Using DHCP
Field | Description |
|---|---|
VLAN ID | VLAN ID for the IPXE boot. |
Network Interface | Network interface for the IPXE boot. |
Using Static
Field | Description |
|---|---|
VLAN ID | VLAN ID for the IPXE boot. |
Network Interface | Network interface for the IPXE boot. |
Static IP | Static IP assigned to the IPXE boot. |
Netmask | Netmask assigned to the IPXE boot. |
Gateway IP | Gateway IP assigned to the IPXE boot. |
DNS IP | DNS IP assigned to the IPXE boot. |
Moving to page 2 of the form there are options for the server, NIC, and bonds.

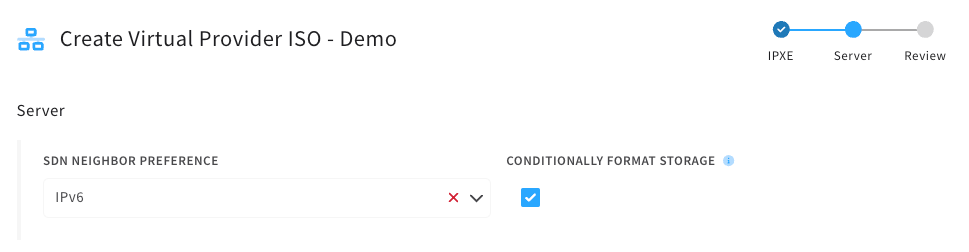

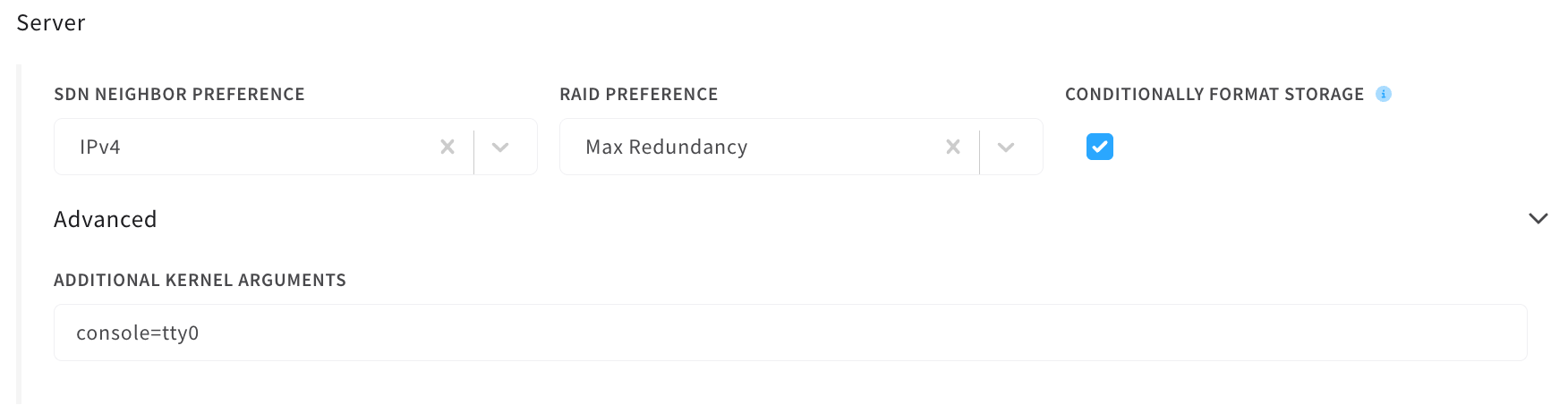

Server
Field | Description |
|---|---|
SDN Neighbor Preference | A preference for SDN neighbors which can be set to IPv4, IPv6, or not set and uses current platform default. |
Conditionally Format Storage | If this option is enabled, on first boot the storage drives of the underlying server are wiped. |
RAID Preference | Determines how Cycle configures RAID on the server's storage drives. Defaults to "Allow platform to decide." See RAID modes below. |
Raid Preference Options
Mode | Description |
|---|---|
Disable RAID | Drives are used individually with no RAID configuration. |
Max Storage | Prioritizes total usable capacity across drives. |
Max Redundancy | Prioritizes fault tolerance over usable capacity. |
Balanced | A middle ground between capacity and redundancy. |
Format Storage
The format storage option will check to see if there's no cycle LVM volume group. If there is not, it will format the disk. This action cannot be reverted.
Server Network Interfaces
Optionally configure server NIC's.
Field | Description |
|---|---|
Match | Interface name or Mac address for the NIC. |
VLAN ID | VLAN ID for the server. |
DHCP Config | DHCP mode. |
Static IP | Static IP assigned to the server. |
Network CIDR | Network CIDR assigned to the server. |
Gateway IP | An IP address is a numerical label that uniquely identifies a device on a network and enables it to send and receive data. |
L2 Config | L2 options for private, public, or shared. |

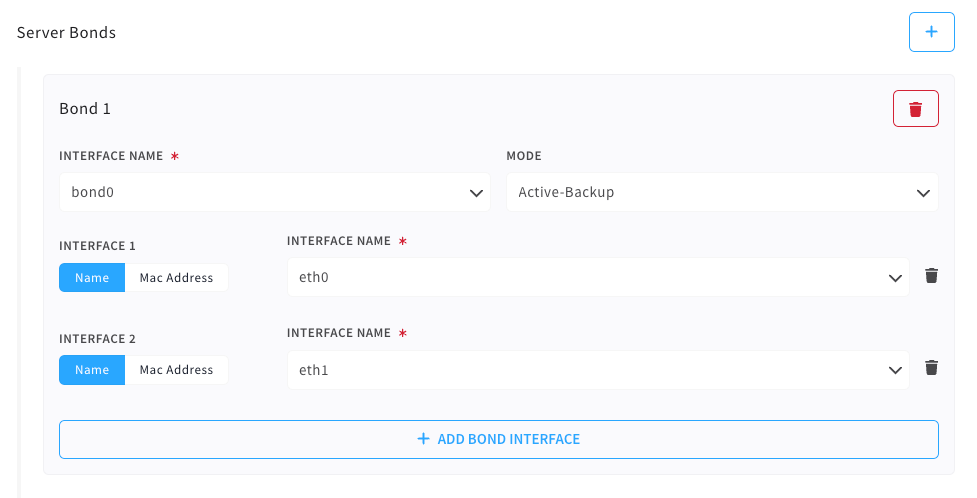

Server Network bonds
Create a bonded (a.k.a. teamed) network interface, which aggregates two or more physical NICs into one logical interface for improved performance, redundancy, or load balancing.
Field | Description |
|---|---|
Interface Name | Name of the bonded (virtual) interface, e.g., |
Mode | Bonding mode strategy, see below. |
Interface 1 | Name of the first physical network interface or Mac address to include in the bond. |
Interface 2 | Name of the second physical network interface or Mac address to include in the bond. |
+ Add Bond Interface | Adds additional physical interfaces to the bond. |
Mode
Mode | Description |
|---|---|
Round Robin | Sends packets in sequential order across all interfaces. Simple load balancing. |
Active-Backup | One link is active at a time. Fails over to a backup if the active link goes down. |
XOR Load Balancing | Uses a hash of MAC/IP/port to consistently choose one interface per traffic flow. |
LACP | IEEE 802.3ad dynamic link aggregation. Requires switch support. Balances load and adds failover. |
Transmit Load Balancing (TLB) | Load balances outbound traffic adaptively; no switch configuration required. |
Adaptive Load Balancing (ALB) | Adds receive-side balancing on top of TLB; no switch configuration required. |
Review
Once all desired fields are set, a review page is shown confirming all selections. If the selections are confirmed, use the Create ISO button.
Generate and Download the ISO
Creating the ISO saves its configuration. To get a bootable file, choose Generate. When it finishes, the button changes to Download. The file is small because it only carries iPXE and your provider token. The server pulls everything else over the network, so it needs ethernet on first boot.
You can serve the ISO over iPXE or write it to a USB drive. The rest of this section covers the USB path.
Write the ISO to a USB Drive
Writing the ISO erases the drive. Use one you don't need, 2 GB or larger, and double-check the device name before running dd. It will overwrite the wrong disk without asking.
macOS
Run diskutil list and note the identifier of the entry marked external, physical. Replace disk4 below with yours.
cd ~/Downloadsdiskutil unmountDisk /dev/<diskN>sudo dd if=<ipxe-xxxx.iso> of=/dev/r<diskN> bs=4m status=progressdiskutil eject /dev/<diskN>If macOS reports the disk is not readable afterward, choose Ignore.
Linux
Run lsblk -o NAME,SIZE,TRAN and note the device marked usb. Use the whole device, not a partition. Replace sdb below with yours.
sudo umount /dev/<sdX>?* 2>/dev/nullsudo dd if=<ipxe-xxxx.iso> of=/dev/<sdX> bs=4M status=progress conv=fsyncWindows
Use Rufus. Pick the drive under Device, select the ISO under Boot selection, and choose START. If asked, pick Write in DD Image mode.
Boot the Server
Plug in the drive, connect the ethernet, and power on.
The server loads iPXE, fetches its configuration with the token in the ISO, and checks in with your hub. Within a few minutes it appears under Infrastructure → Servers in quarantine.
Managing ISOs
To change an ISO after creating it, choose the pencil icon next to it. Edits open in a modal.
